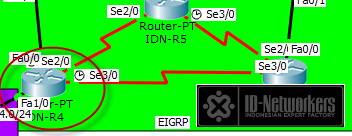

Topologi

Tujuan Lab :
√ Konfigurasi antar router dengan menggunakan routing dynamic eigrp, RIP ver 2, ospf dan semua client (PC) dapat saling terkoneksi


Materi Lab :
√ Routing Dynamic OSPF
√ Routing Dynamic RIP Ver 2
√ Routing Dynamic EIGRP
√ Redistribution

Konfigurasi Lab :

Seperti biasa untuk konfigurasi pertama yang kita lakukan adalah di device topologi yang sebelah kiri terlebih dahulu yaitu IDN-R1




Konfigurasi setiap interface

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R1
IDN-R1(config)#interface fa0/0
IDN-R1(config-if)#ip address 111.111.111.1 255.255.255.0
IDN-R1(config-if)#no shutdown
IDN-R1(config-if)#exit

IDN-R1(config)#interface se2/0
IDN-R1(config-if)#ip address 13.13.13.1 255.255.255.0
IDN-R1(config-if)#no shutdown
IDN-R1(config-if)#exit

IDN-R1(config)#interface se3/0
IDN-R1(config-if)#ip address 12.12.12.1 255.255.255.0
IDN-R1(config-if)#no shutdown
IDN-R1(config-if)#exit

 Verifikasi

Verifikasi Interface di IDN-R1

Kemudian kita konfigurasi routing dynamic ospf nya di IDN-R1

IDN-R1(config)#router ospf 1
IDN-R1(config-router)#network 111.111.111.0 0.0.0.255 area 0
IDN-R1(config-router)#network 13.13.13.0 0.0.0.255 area 0
IDN-R1(config-router)#network 12.12.12.0 0.0.0.255 area 0
IDN-R1(config-router)#exit

Verifikasi routing

Verifikasi routing OSPF di IDN-R1

Tahap selanjut nya kita melakukan konfigurasi di IDN-R2
Pertama kita konfigurasi di setiap interface nya, pastikan tidak ada interface yang down

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R2
IDN-R2(config)#interface fa0/0
IDN-R2(config-if)#ip address 122.122.122.2 255.255.255.0
IDN-R2(config-if)#no shutdown
IDN-R2(config-if)#exit

IDN-R2(config)#interface se2/0
IDN-R2(config-if)#ip address 23.23.23.2 255.255.255.0
IDN-R2(config-if)#no shutdown
IDN-R2(config-if)#exit

IDN-R2(config)#interface se3/0
IDN-R2(config-if)#ip address 12.12.12.2 255.255.255.0
IDN-R2(config-if)#no shutdown
IDN-R2(config-if)#exit

Verifikasi

Verfikasi Interface di IDN-R2

Kemudian konfigurasi routing protokol ospf

IDN-R2(config)#router ospf 1
IDN-R2(config-router)#network 122.122.122.0 0.0.0.255 area 0
IDN-R2(config-router)#network 23.23.23.0 0.0.0.255 area 0
IDN-R2(config-router)#network 12.12.12.0 0.0.0.255 area 0
IDN-R2(config-router)#exit

Verifikasi

Verifikasi table routing ospf

Tahap selanjut nya melakukan konfigurasi pada router IDN-R3.

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R3
IDN-R3(config)#interface fa0/0
IDN-R3(config-if)#ip address 103.103.103.3 255.255.255.0
IDN-R3(config-if)#no shutdown
IDN-R3(config-if)#exit

IDN-R3(config)#interface fa1/0
IDN-R3(config-if)#ip address 133.133.133.3 255.255.255.0
IDN-R3(config-if)#no shutdown
IDN-R3(config-if)#exit

IDN-R3(config)#interface se2/0
IDN-R3(config-if)#ip address 23.23.23.3 255.255.255.0
IDN-R3(config-if)#no shutdown
IDN-R3(config-if)#exit

IDN-R3(config)#interface se3/0
IDN-R3(config-if)#ip address 13.13.13.3 255.255.255.0
IDN-R3(config-if)#no shutdown
IDN-R3(config-if)#exit

Verifikasi

Verifikasi Interface di IDN-R3

Kemudian melakukan konfigurasi routing protokol nya di IDN-R3

IDN-R3(config)#router ospf 1
IDN-R3(config-router)#network 103.103.103.0 0.0.0.255 area 0
IDN-R3(config-router)#network 133.133.133.0 0.0.0.255 area 0
IDN-R3(config-router)#network 23.23.23.0 0.0.0.255 area 0
IDN-R3(config-router)#network 13.13.13.0 0.0.0.255 area 0
IDN-R3(config-router)#exit

Verifikasi

Verifikasi routing table ospf

Lalu kita test koneksi antar PC yang mempunyai routing protokol yang sama, di IDN-R1, IDN-R2 dan IDN-R3, menggunakan dynamic routing protokol ospf. Test ping dilakukan di IDN-PC6 <> IDN-PC1

Ping status OK

Tahap selanjutnya kita konfigurasi pada area routing protokol yang berbeda, kita mulai pada router IDN-R4

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R4
IDN-R4(config)#interface fa0/0
IDN-R4(config-if)#ip address 144.144.144.4 255.255.255.0
IDN-R4(config-if)#no shutdown
IDN-R4(config-if)#exit

IDN-R4(config)#interface fa1/0
IDN-R4(config-if)#ip address 104.104.104.4 255.255.255.0
IDN-R4(config-if)#no shutdown
IDN-R4(config-if)#exit

IDN-R4(config)#interface se2/0
IDN-R4(config-if)#ip address 45.45.45.4 255.255.255.0
IDN-R4(config-if)#no shutdown
IDN-R4(config-if)#exit

IDN-R4(config)#interface se3/0
IDN-R4(config-if)#ip address 46.46.46.4 255.255.255.0
IDN-R4(config-if)#no shutdown
IDN-R4(config-if)#exit

 Verifikasi interface

Verifikasi Interface di IDN-R4

Kemudian melakukan konfigurasi routing protokol nya

IDN-R4(config)#router eigrp 100
IDN-R4(config-router)#no auto-summary
IDN-R4(config-router)#network 144.144.144.0
IDN-R4(config-router)#network 104.104.104.0
IDN-R4(config-router)#network 45.45.45.0
IDN-R4(config-router)#network 46.46.46.0
IDN-R4(config-router)#exit

Verifikasi

Verifikasi roting protokol eigrp

Tahap selanjut nya kita konfigurasi di IDN-R5

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R5
IDN-R5(config)#interface fa0/0
IDN-R5(config-if)#ip address 155.155.155.5 255.255.255.0
IDN-R5(config-if)#no shutdown
IDN-R5(config-if)#exit

IDN-R5(config)#interface se2/0
IDN-R5(config-if)#ip address 45.45.45.5 255.255.255.0
IDN-R5(config-if)#no shutdown
IDN-R5(config-if)#exit

IDN-R5(config)#interface se3/0
IDN-R5(config-if)#ip address 56.56.56.5 255.255.255.0
IDN-R5(config-if)#no shutdown
IDN-R5(config-if)#exit

Verifikasi

Verifikasi Interface di IDN-R5

Konfigurasi routing protokol

IDN-R5(config)#router eigrp 100
IDN-R5(config-router)#no auto-summary
IDN-R5(config-router)#network 155.155.155.0
IDN-R5(config-router)#network 45.45.45.0
IDN-R5(config-router)#network 56.56.56.0
IDN-R5(config-router)#exit

Verifikasi

Verifikasi routing protokol eigrp

Kita lanjut ke konfigurasi IDN-R6, berikut command konfigurasi nya

IDN-R6>enable
IDN-R6#configure terminal
IDN-R6(config)#hostname IDN-R6
IDN-R6(config)#interface fa0/0
IDN-R6(config-if)#ip address 166.166.166.6 255.255.255.0
IDN-R6(config-if)#no shutdown
IDN-R6(config-if)#exit

IDN-R6(config)#interface se2/0
IDN-R6(config-if)#ip address 56.56.56.6 255.255.255.0
IDN-R6(config-if)#no shutdown
IDN-R6(config-if)#exit

IDN-R6(config)#interface se3/0
IDN-R6(config-if)#ip address 46.46.46.6 255.255.255.0
IDN-R6(config-if)#no shutdown
IDN-R6(config-if)#exit

 Verifikasi

Verifikasi Interface

Kemudian kita konfigurasi routing protokol EIGRP

IDN-R6(config)#router eigrp 100
IDN-R6(config-router)#no auto-summary
IDN-R6(config-router)#network 166.166.166.0
IDN-R6(config-router)#network 56.56.56.0
IDN-R6(config-router)#network 46.46.46.0
IDN-R6(config-router)#exit

Verifikasi Routing protokol eigrp

Setelah kita konfigurasi semua di area router yang protokol routing nya eigrp, lakukan lah test koneksi yang routing protokol nya sama yaitu eigrp. Disini ane mengambil sample dari IDN-PC8 <> IDN-PC11

Test Connection OK

Tahapan selanjut nya kita konfigurasi di area router-router dengan routing  protokol RIV Ver. 2, pertama kita konfigurasi di router IDN-R7

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R7
IDN-R7(config)#interface fa0/0
IDN-R7(config-if)#ip address 177.177.177.7 255.255.255.0
IDN-R7(config-if)#no shutdown
IDN-R7(config-if)#exit

IDN-R7(config)#interface se2/0
IDN-R7(config-if)#ip address 78.78.78.7 255.255.255.0
IDN-R7(config-if)#no shutdown
IDN-R7(config-if)#exit

IDN-R7(config)#interface se3/0
IDN-R7(config-if)#ip address 79.79.79.7 255.255.255.0
IDN-R7(config-if)#no shutdown
IDN-R7(config-if)#exit

IDN-R7(config-router)#router rip
IDN-R7(config-router)#version 2
IDN-R7(config-router)#no auto-summary
IDN-R7(config-router)#network 177.177.177.0
IDN-R7(config-router)#network 78.78.78.0
IDN-R7(config-router)#network 79.79.79.0
IDN-R7(config-router)#exit

Untuk verifikasi interface sama seperti verifikasi pada router sebelumnya, disini kita hanya verifikasi protokol routingnya saja sebagai berikut:

Verifikasi routing table RIP Ver 2

Kemudian kita konfigurasi router rip berikutnya yaitu IDN-R8

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R8
IDN-R8(config)#interface fa0/0
IDN-R8(config-if)#ip address 108.108.108.8 255.255.255.0
IDN-R8(config-if)#no shutdown
IDN-R8(config-if)#exit

IDN-R8(config)#interface fa1/0
IDN-R8(config-if)#ip address 188.188.188.8 255.255.255.0
IDN-R8(config-if)#no shutdown
IDN-R8(config-if)#exit

IDN-R8(config)#interface se2/0
IDN-R8(config-if)#ip address 78.78.78.8 255.255.255.0
IDN-R8(config-if)#no shutdown
IDN-R8(config-if)#exit

IDN-R8(config)#interface se3/0
IDN-R8(config-if)#ip address 89.89.89.8 255.255.255.0
IDN-R8(config-if)#no shutdown
IDN-R8(config-if)#exit

IDN-R8(config)#router rip
IDN-R8(config-router)#version 2
IDN-R8(config-router)#no auto-summary
IDN-R8(config-router)#network 108.108.108.0
IDN-R8(config-router)#network 188.188.188.0
IDN-R8(config-router)#network 78.78.78.0
IDN-R8(config-router)#network 89.89.89.0
IDN-R8(config-router)#exit

Verikfikasi protokol routing RIP di IDN-R8
Kemudian kita konfigurasi di IDN-R9

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R9
IDN-R9(config)#interface fa0/0
IDN-R9(config-if)#ip address 199.199.199.9 255.255.255.0
IDN-R9(config-if)#no shutdown
IDN-R9(config-if)#exit

IDN-R9(config)#interface se2/0
IDN-R9(config-if)#ip address 89.89.89.9 255.255.255.0
IDN-R9(config-if)#no shutdown
IDN-R9(config-if)#exit

IDN-R9(config)#interface se3/0
IDN-R9(config-if)#ip address 79.79.79.9 255.255.255.0
IDN-R9(config-if)#no shutdown
IDN-R9(config-if)#exit

IDN-R9(config)#router rip
IDN-R9(config-router)#version 2
IDN-R9(config-router)#no auto-summary
IDN-R9(config-router)#network 199.199.199.0
IDN-R9(config-router)#network 89.89.89.0
IDN-R9(config-router)#network 79.79.79.0
IDN-R9(config-router)#exit

Verifikasi Routing Table Rip

Pada tahap selanjutnya kita akan melakukan redistribution. Artinya, dengan keadaan router yang berdeda routing protokol apakah bisa saling komunikasi. Jawabannya, bisa yaitu dengan melakukan redistribution semua routing protokol yang ada di IDN-R10

Router>enable
Router#configure terminal
Router(config)#hostname IDN-R10
IDN-R10(config)#interface fa0/0
IDN-R10(config-if)#ip address 108.108.108.10 255.255.255.0
IDN-R10(config-if)#no shutdown
IDN-R10(config-if)#exit

IDN-R10(config)#interface fa1/0
IDN-R10(config-if)#ip address 103.103.103.10 255.255.255.0
IDN-R10(config-if)#no shutdown
IDN-R10(config-if)#exit

IDN-R10(config)#interface fa6/0
IDN-R10(config-if)#ip address 104.104.104.10 255.255.255.0
IDN-R10(config-if)#no shutdown
IDN-R10(config-if)#exit

IDN-R10(config)#interface se2/0
IDN-R10(config-if)#ip address 89.89.89.9 255.255.255.0
IDN-R10(config-if)#no shutdown
IDN-R10(config-if)#exit

IDN-R10(config)#interface se3/0
IDN-R10(config-if)#ip address 79.79.79.9 255.255.255.0
IDN-R10(config-if)#no shutdown
IDN-R10(config-if)#exit

IDN-R10(config)#router ospf 1
IDN-R10(config-router)#network 103.103.103.0 0.0.0.255 area 0
IDN-R10(config-router)#redistribute rip subnet tag 1
IDN-R10(config-router)#redistribute eigrp 100 subnet
IDN-R10(config-router)#exit

IDN-R10(config)#router eigrp 100
IDN-R10(config-router)#network 104.104.104.0
IDN-R10(config-router)#redistribute rip metric 1 0 1 1 1
IDN-R10(config-router)#redistribute ospf 1 metric 1 1 1 1 1
IDN-R10(config-router)#exit

IDN-R10(config)#router rip
IDN-R10(config-router)#version 2
IDN-R10(config-router)#network 108.108.108.0
IDN-R10(config-router)#redistribute ospf 1 metric 1
IDN-R10(config-router)#redistribute eigrp 100 metric 1
IDN-R10(config-router)#exit

Prosess redistribusi sudah selesai kita lihat sekarang verifikasi nya ping PC antar PC dengan prtokol routnig yang berbrda

Connection OK

Traceroute OK

Alhamdulillah, semuanya sudah bisa terkoneksi baik antar routing protokol yang sama atau pun routing protokol yang berbeda. Sampai sini dulu ya sob, see you..

Semoga Bermanfaat !
